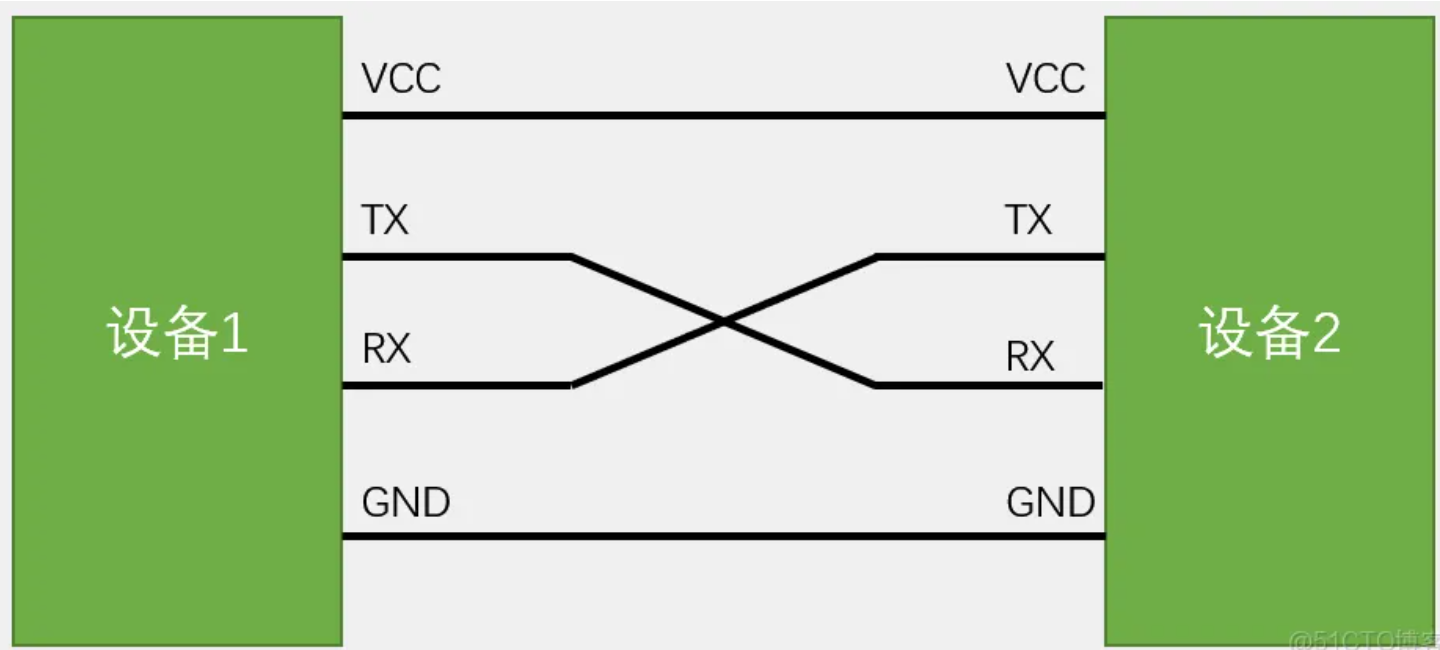

串口分为接收和发送两个协议分别是TX和RX。

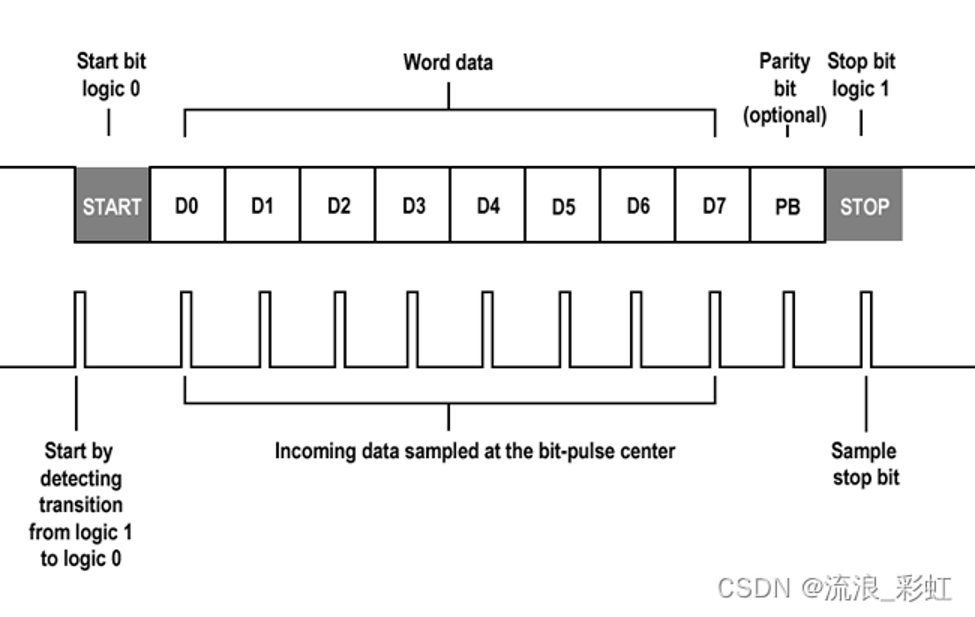

串口协议图如下图所示：
其中最开始为起始位，中间是数据位，然后奇偶校验区间，最后是终止位。
起始位规定为低电平，终止位规定为高电平。中间8位为数据位。奇偶校验位可以根据选择添加或者不添加。就是状态机多个状态，校验状态。
奇校验（Odd Parity）： 让数据位+校验位里1的总数为奇数。
偶校验（Even Parity）： 让数据位+校验位里1的总数为偶数。
接收方收到数据后自己算一遍，如果1的个数不对说明传输出错了。
RX采样选择在中间采样，这样避免毛刺导致错误的开始接收。

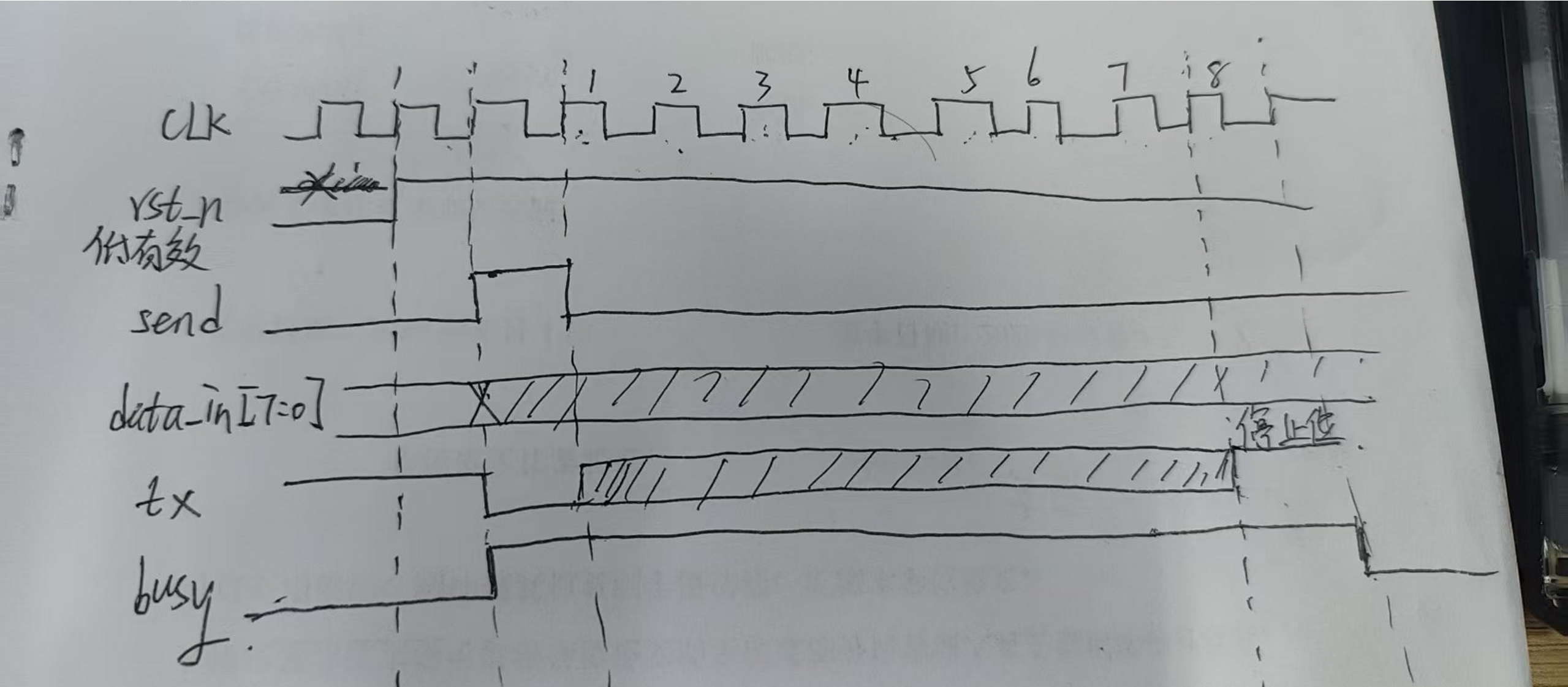

TX时序图如下图所示：

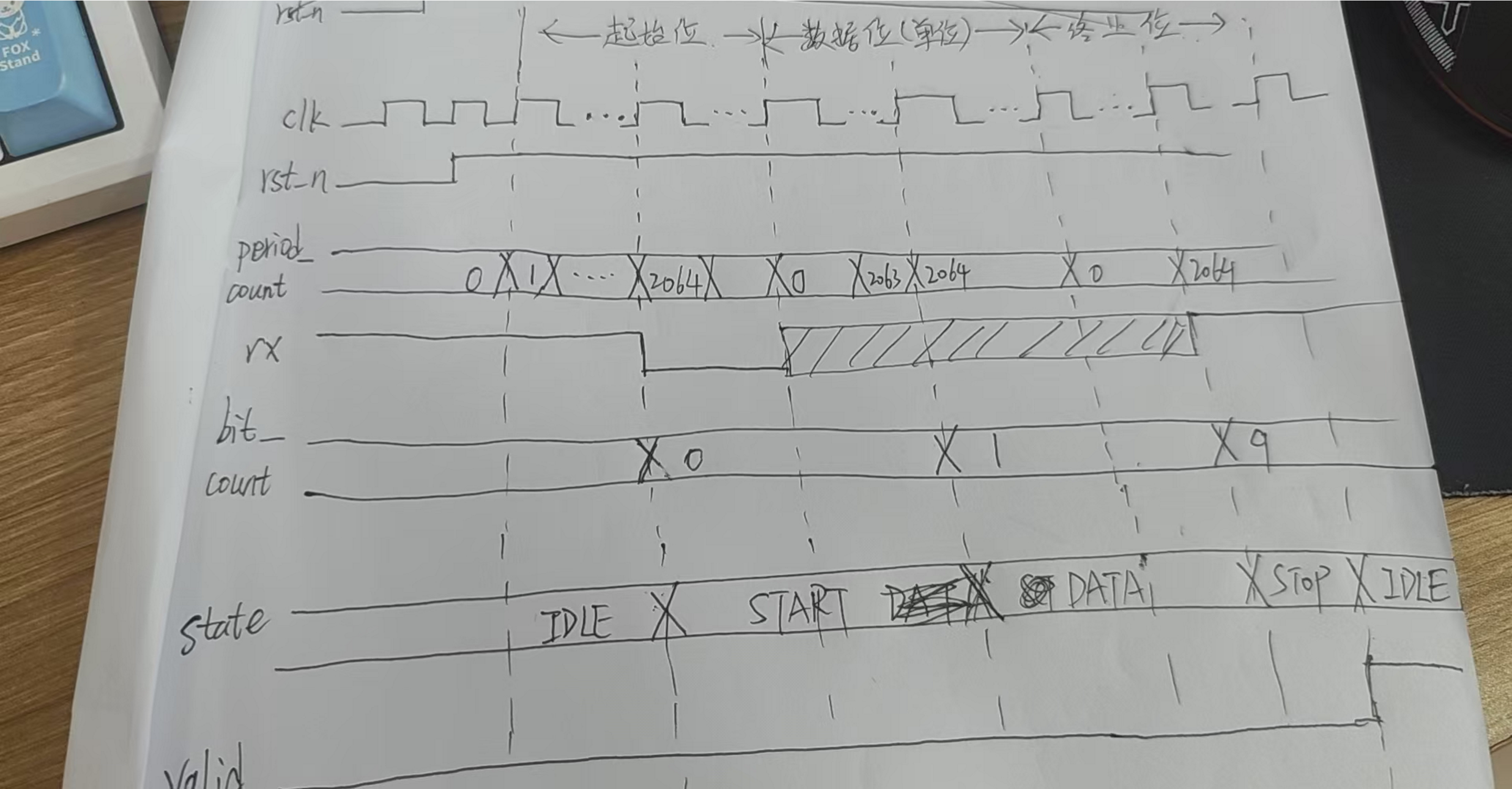

RX时序图如下图所示

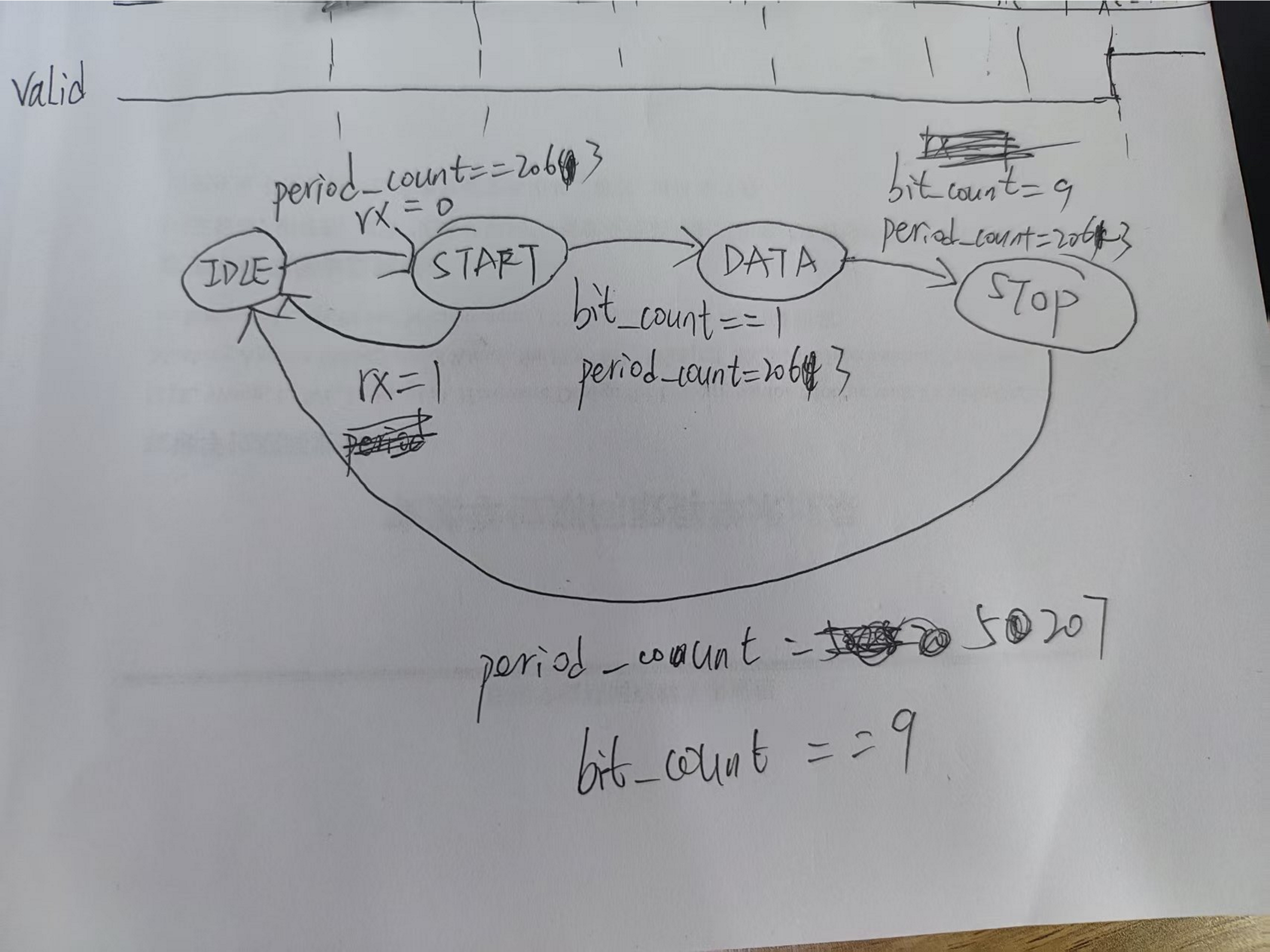

RX状态机变化图如下图所示
代码如下所示：
波特率计算公式
baud_count = clk_freq / baud_rate - 1
TX代码如下所示：
module uart_tx#(
parameter clk_freq = 50000000, //50MHz
parameter baud_rate = 9600
)(
input clk,
input rst_n,
input [7:0] data_in,
input send,
output reg tx,
output reg busy
);
localparam IDLE = 2’b00;
localparam DATA = 2’b01;
localparam STOP = 2’b10;
localparam baud_count = clk_freq/baud_rate-1;
reg [1:0] state;
reg [3:0] bit_count;//记录当前在传输第几位
reg [12:0] period_count;
reg [7:0] data_in_reg; //输入数据寄存
//状态机变换
always@(posedge clk or negedge rst_n) begin
if(!rst_n) begin
state <= IDLE;
end
else begin
case(state)
IDLE:state <= (send & (!busy))?DATA:IDLE; //判断是否空闲和请求发送
DATA:state <= (bit_count == 8'd8 && (period_count == baud_count))?STOP:DATA; //判断是否在停止位
STOP:state <= (period_count == baud_count)?IDLE:STOP; //判断是否结束传输
default:state <= IDLE;
endcase
end
end
//数据传输
always@(posedge clk or negedge rst_n) begin
if(!rst_n) begin
tx<=1;
busy <= 0;
bit_count <= 0;
period_count <= 0;
end
else
case(state)
IDLE:begin
tx <= 1;
busy <= 0;
bit_count <= 0;
period_count <= 0;
data_in_reg <= data_in;
end
DATA:begin
busy <= 1;
if(period_count == baud_count)begin
bit_count <= bit_count +1;
period_count <= 0;
end
else begin
period_count <= period_count +1;
if(bit_count == 0)
tx <= 0;
else
tx <= data_in_reg[bit_count-1];
end
end
STOP:begin
busy <= 1;
tx <= 1;
if(period_count == baud_count)
period_count <= 0;
else
period_count <= period_count + 1;
end
default:begin
tx <= 1;
busy <= 0;
end
endcase
end
endmodule
RX代码如下所示： module uart_rx#( parameter clk_freq = 50000000, //50MHz parameter baud_rate = 9600 )( input clk, input rst_n, input rx, output reg valid, output reg [7:0] data_out ); localparam baud_count = clk_freq/baud_rate-1; //波特率标签位 localparam baud_count_mid= clk_freq/(2*baud_rate)-1; //中间标签位 localparam IDLE = 2’b00; localparam START = 2’b01; localparam DATA = 2’b10; localparam STOP = 2’b11; reg [3:0] bit_count; reg [12:0] period_count; reg [1:0] state;
//状态机状态变化
always@(posedge clk or negedge rst_n) begin
if(!rst_n)begin
state <= IDLE;
end
else
case(state)
IDLE:state <= (!rx)?START:IDLE;
START:state <= (period_count == baud_count_mid)?((!rx)?DATA:IDLE):START;
DATA:state <= ((bit_count == 4'd8) && (period_count == baud_count))?STOP:DATA;
STOP:state <= (period_count == baud_count)?IDLE:STOP;
default:state <= IDLE;
endcase
end
always@(posedge clk or negedge rst_n) begin
if(!rst_n) begin
period_count <= 0;
bit_count <= 0;
valid <= 0;
data_out <= 8'd0;
end
else
case(state)
IDLE:begin
bit_count <= 0;
valid <= 0;
data_out <= 8'd0;
period_count <= 4'd0;
end
START:begin
period_count <= period_count + 1;
end
DATA:begin
if(period_count == baud_count_mid)
data_out[bit_count-1] <= rx;
if(period_count == baud_count) begin
bit_count <= bit_count + 1;
period_count <= 0;
end
else
period_count <= period_count + 1;
end
STOP:begin
if(period_count == baud_count) begin
bit_count <= bit_count + 1;
period_count <= 0;
valid <= 1;
end
else begin
period_count <= period_count + 1;
valid <= 0;
end
end
endcase
end
endmodule 补充： START跳DATA时period_count不清零， 让采样点自然落在每位中间。 data_out[bit_count-1]的-1是配套的索引补偿。 鲁棒性不足的地方： 没有帧错误检测 没有超时保护 data_out没有影子寄存器
